Projection Lamp
Lego lamps, free stitching

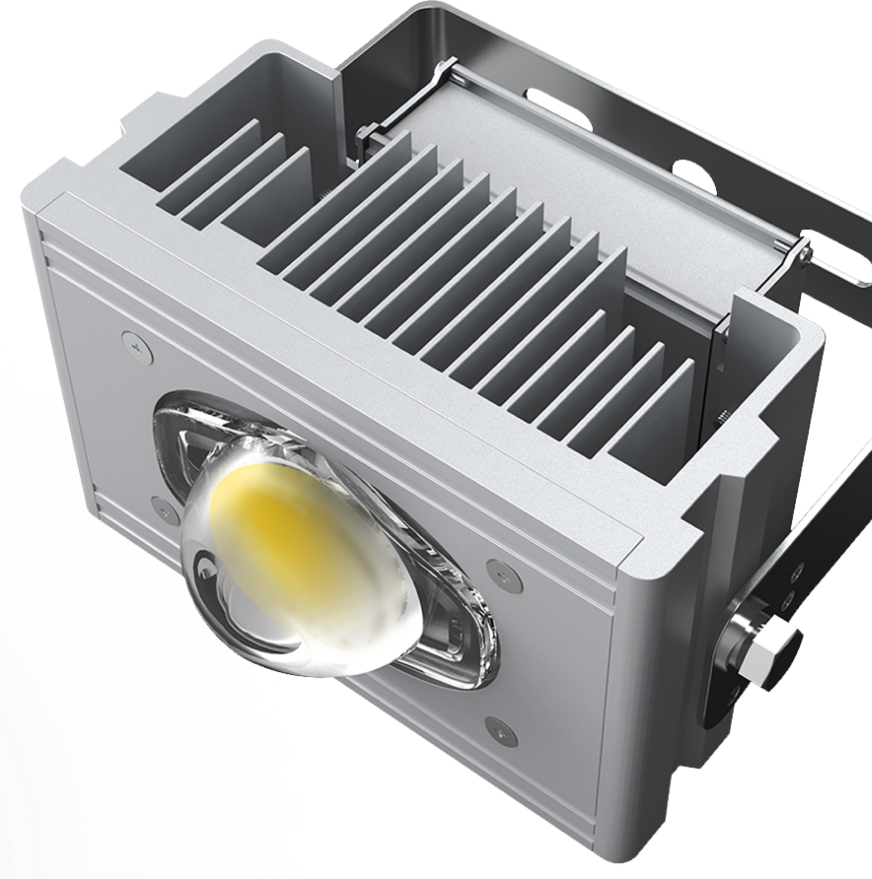

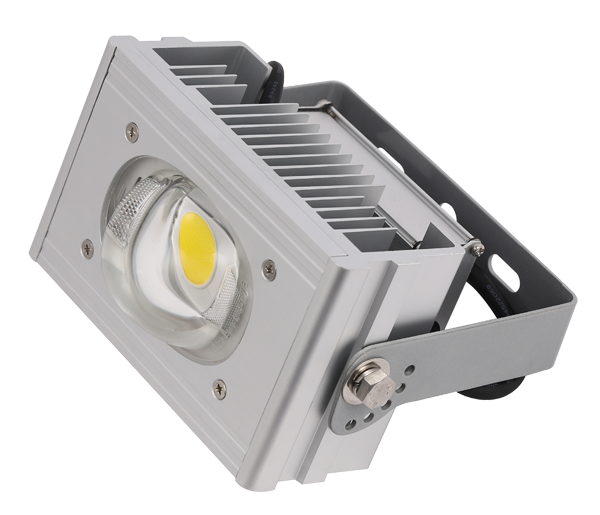

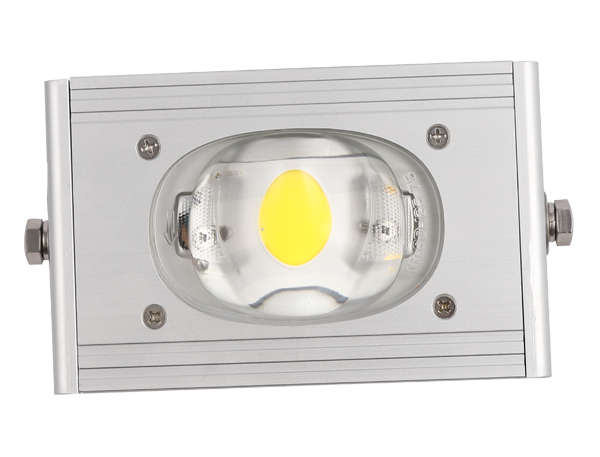

AD-TG04 Product Features
Compact size, lightweight, low wind resistance, high brightness, and exceptional light control capabilities.
Provides an illuminance of 100lm/cm² and a light efficiency of 200lm/kg.
Offers outstanding light efficiency with a whole lamp efficiency of 140-150lm/W, making it a suitable replacement for standard LED floodlights of 1500W in the market while providing the same illuminance level.
Boasts an extra-long lifespan with a 5-year global outdoor warranty.
Utilizes COB light sources, resulting in over 60% energy savings compared to traditional fixtures at the same illuminance.
Demonstrates ultra-low light decay, with a luminous flux maintenance rate of over 95% within 5 years.
Provides superior protection with professional waterproof connectors and a special sealing structure, achieving an IP67 waterproof and dustproof rating. It is suitable for high-temperature, high-humidity, high-dust, and other challenging environments.
Incorporates high borosilicate glass lens material to ensure long-term usage without yellowing.
Our Eight Generation Venus Series High Mast Lights are an ideal choice for high mast lighting applications below 40 meters. With their compact design, lightweight construction, high brightness, exceptional light efficiency, and long lifespan, they offer energy efficiency and reliability while meeting the high illuminance requirements.

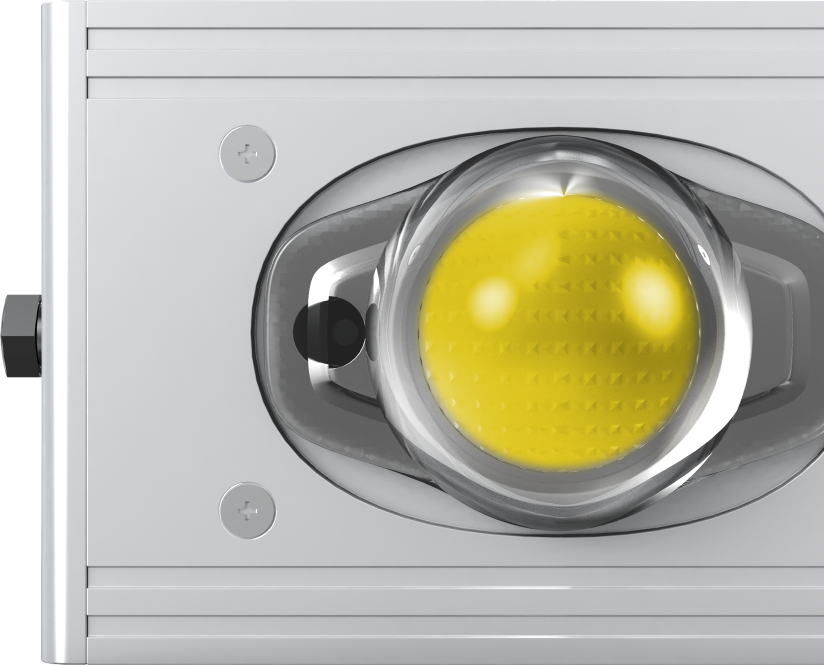

COB+ glass lens structure, Zero light decay
COB+ glass lens structure, zero light decay To ensure the maximum light rate and stability of the lamps. The optical attenuation of light source and the optical attenuation of PC lens caused by yellowing due to long-term use are avoided. Ensure consistent brightness, zero light decay for five years.

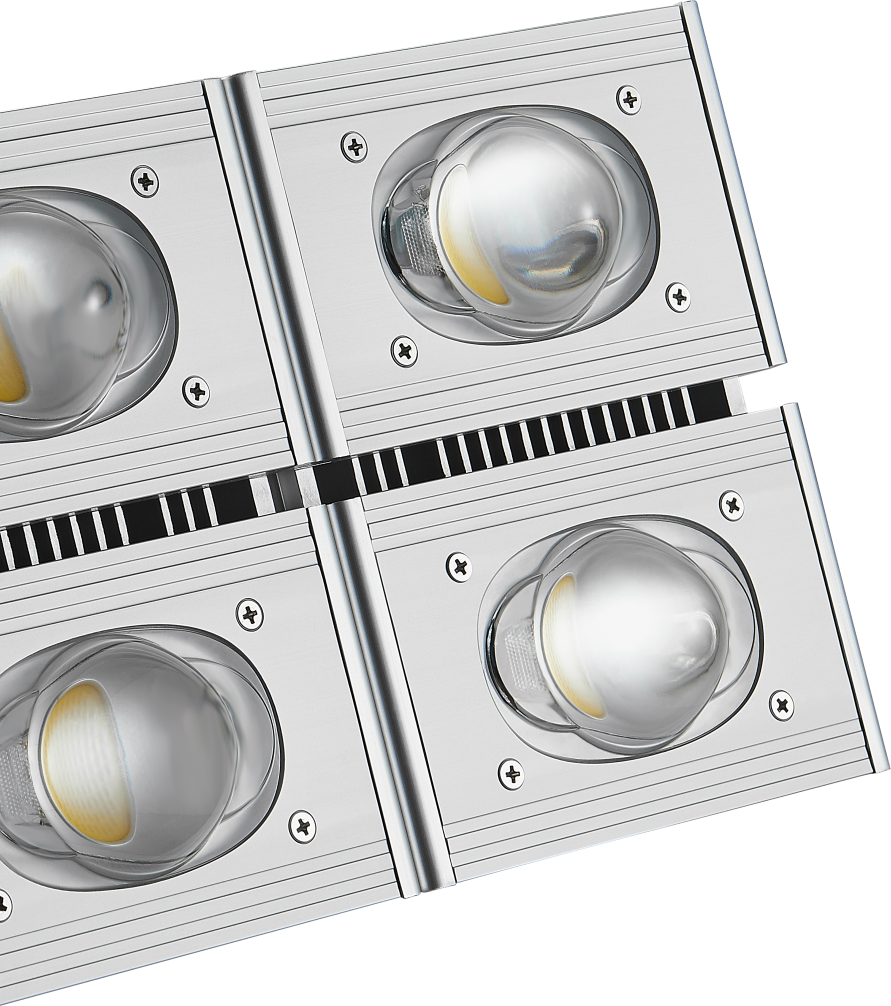

Simple assembly, Arbitrary change
It can be assembled into 50-500W by a single module freely, greatly reducing the inventory pressure, meeting all outdoor lighting requirements, truly "lighting a city with only one lamp".
Ultra high lumen
Adopt self-packaging COB, the whole lighting effect up to 170lm/ W. Ultra high light efficiency and accurate light distribution can avoid wasting even a ray of light, which further improves the brightness of lighting.

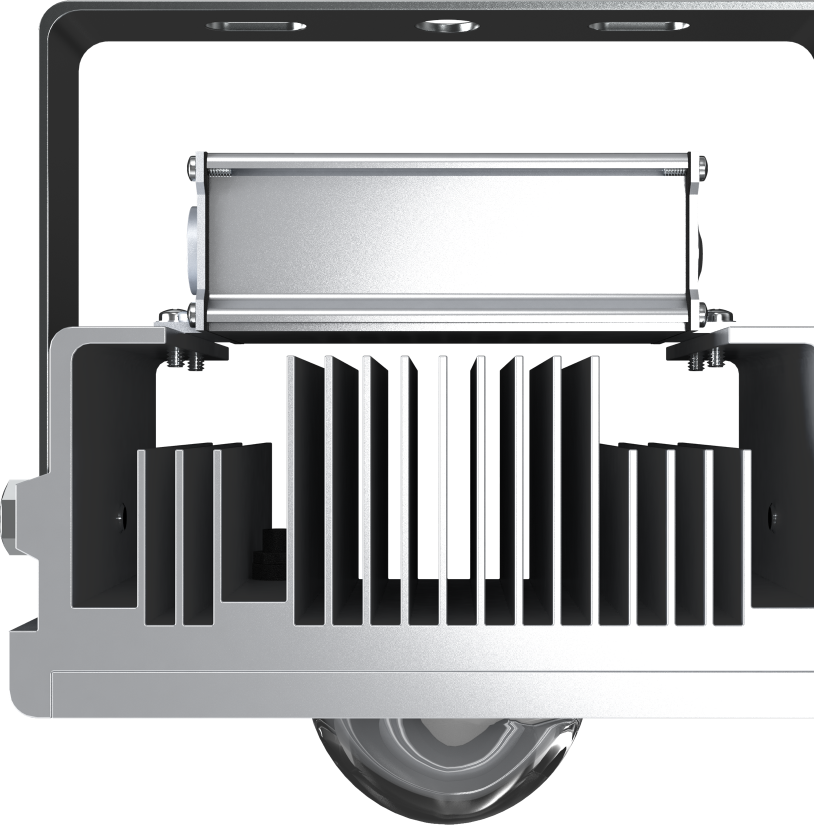

Super simple sense
With special heat dissipation structure and fine surface treatment technology on the collision of high quality profiles, create a lighting module with first-class heat dissipation and superior quality.
Reliable quality
ADHESION all lamps are guaranteed for five years. Moreover, it has made a rare promise in the industry that the annual luminous flux maintenance rate will be fully refunded if it is lower than 95% within five years.
Military protection
IP67, suitable for high temperature, high humidity and high dust area and special lighting.
Product parameters
Item CRI Color temperature Power Light efficiency IP grade Weight
AD-TG0450W 70-90 Optional 5000K
Can be customized
50W 175-185 lm/W IP67 1.45kg
AD-TG04100W 70-90 Optional 5000K
Can be customized
100W 175-185 lm/W IP67 1.45kg
AD-TG04200W 70-90 Optional 5000K
Can be customized
200W 175-185 lm/W IP67 1.45kg
AD-TG04300W ≥ 70 5000K
Can be customized
300W 175-185 lm/W IP67 1.45kg
AD-TG04500W 70-90 Optional 5000K
Can be customized
500W 175-185 lm/W IP67 1.45kg

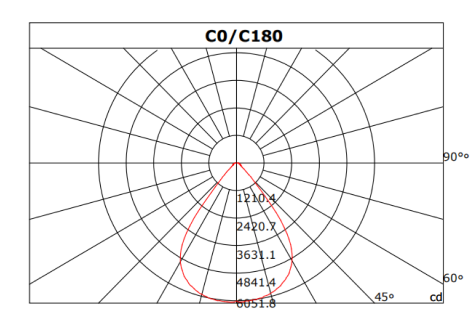

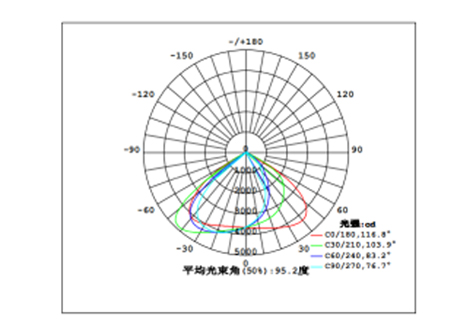

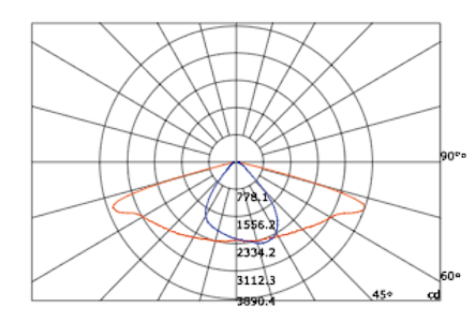

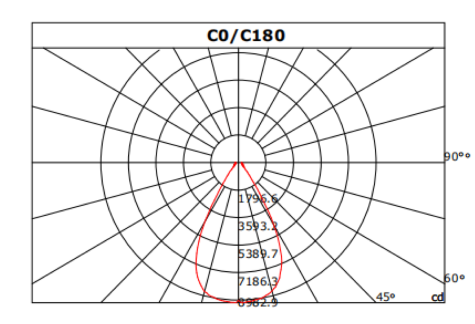

Light distribution curve
ANGLE :60 DEG
ANGLE :90 DEG
ANGLE :70x150 DEG
ANGLE :80x120 DEG
